Our equipement

Our equipementHighly performance

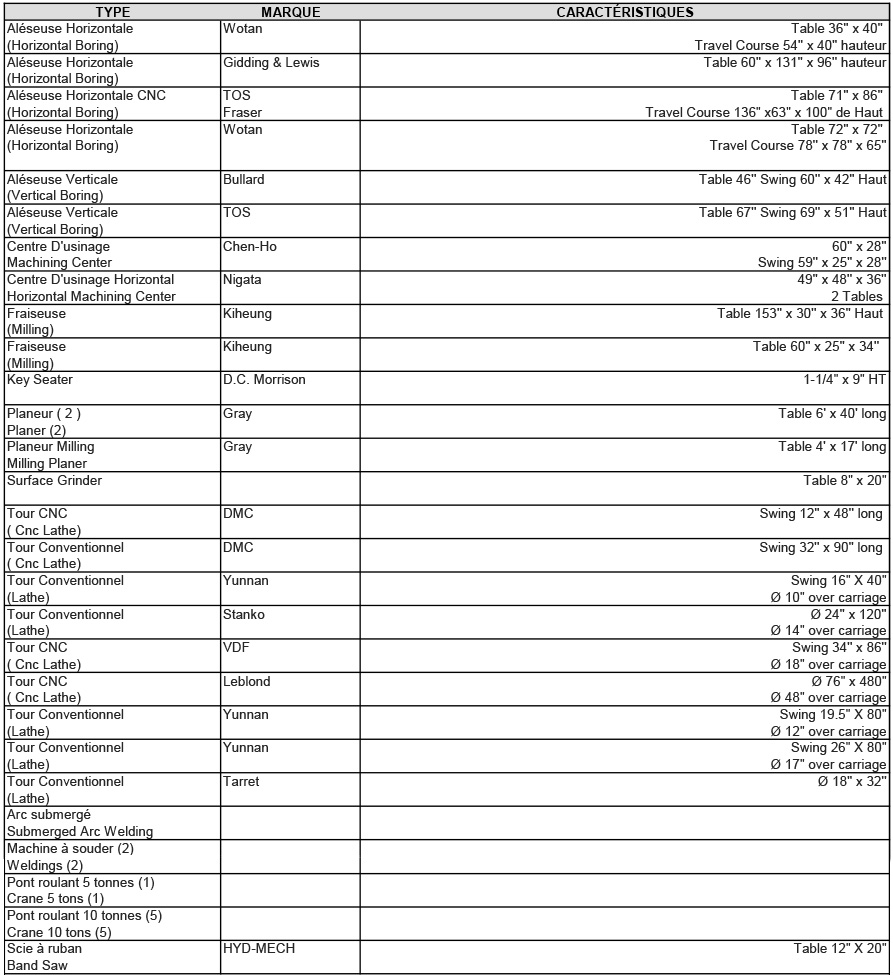

Machining Richelieu has a team of precision machining professionals able to create parts or components of the highest quality. Our state-of-the-art equipment including milling machines, CNC lathes and boring machines enables us to machine parts from several types of metals such as plastics, steel, metal, copper, aluminum or Titanium. Our high-performance machinery allows us to adapt our production capacities according to the needs of our customers. You will find a list of our equipment below:

Tour DL25 CNC

Components

MIN DIA: 1
Max Dia Top table: 17 in
Max Dia: 17 in
Max Rpm: 2500
Motor: 24/30 HP
Lenght piece max: 45 in
Max Weight: 1000 pds
Steady rest: 0
Inside pin: 2,940

Milling Kiheung RT1000N CNC

Components

Table: 47 X 56
Spindle: Cat50
Quill: 23,5 po X 130 mm
Universal head For all use machining and all positions
RAM: 33,5 PO X 440mm X 500mm
Weight capacity: 7,5 ton
Rpm max: 2500
Motor: 50/65 HP
Stroke X: 98
Stroke Y: 73
Stroke Z: 31
Stroke B axis: 360,000

Milling TOS WHQ CNC

Components

Table: 84 X 72
Spindle: Cat50
Quill: 20 po X 130mm
Weight capacity: 10 Ton centrer
Rpm max: 2500 2 step gear
Motor: 60 HP
Stroke X: 136
Stroke Y: 96
Stroke Z: 50
Stroke B axis: 360,000
Coolant inside
Front head: 24in dia x 48 in lg

Milling AWEA SP3016

Components

Table: 1500mm X 3260 mm
Spindle: BT50
Weight capacity: 10 Ton
Rpm max: 6000 2 step gear
Motor: 50 HP
Stroke X: 3060 mm
Stroke Y: 1600 mm
Stroke Z: 760 mm
Stroke B axis: 360,000
Maximum movement: speed 20,000 m/min
Distance between columns 1700 mm
Tool store: 60
Coolant inside pin high pressure

Tour VDF CNC

Components

Min Dia: 5 in
Max Dia: Top table 18 in
Max Dia: 31 in
Max Rpm: 900
Motor: 40/60 HP
Lenght pieces max: 75 po
Max Weight
Steady rest: 2
Inside Pin: 4,25


Tour Leblond CNC

Components

Min Dia: 4 in
Max Dia Top table: 47 in - 66800 pd -  278RPm
Max Dia:  72 in -  68400 pd - 250RPm
Max Rpm:  300 - 73200 pd - 200RPm
Max Av.: 4800 in min - 80000 pd - 150RPm
Motor: 95/140 HP- 84000 pd - 125RPm
Max Lenght piece: 40 feet - 90000 pd -  100RPm
Max Weight: 40 Ton - 100000 pd - 70RPm
Steady rest: 3

Tour vertical OM CNC

Components

Min Dia: 3 in
Table Dia: 63 in
Max Dia Piece: 73 in
Max Rpm: 200
Motor: 40/60 HP
Max Height: 54 in
Max Weight: 7 Ton
X: 73
Z: 34
Ram: 30
